Choose by function. Confirm by tube and thread.

A model-led directory built from documented factory stock: union, union elbow, reducer, male elbow, tee, reducing tee and metal threaded configurations.

PL · BPC

Choose a model to start your quotation.

Match the tube outside diameter and the receiving port thread. These model references do not imply current stock or a shared pressure rating; we confirm suitability and availability for your order.

↔ Swipe to view all columns.

ModelTube ODMale threadShapeQuotation
PL6-M56 mmM5ElbowQuote ↗
PL6-016 mmR1/8 (BSPT)ElbowQuote ↗
PL6-026 mmR1/4 (BSPT)ElbowQuote ↗
PL6-036 mmR3/8 (BSPT)ElbowQuote ↗
PL6-046 mmR1/2 (BSPT)ElbowQuote ↗
PL8-M58 mmM5ElbowQuote ↗
PL8-018 mmR1/8 (BSPT)ElbowQuote ↗
PL8-028 mmR1/4 (BSPT)ElbowQuote ↗
PL8-038 mmR3/8 (BSPT)ElbowQuote ↗
PL8-048 mmR1/2 (BSPT)ElbowQuote ↗
BPC8-M58 mmM5StraightQuote ↗
BPC8-018 mmR1/8 (BSPT)StraightQuote ↗
BPC8-028 mmR1/4 (BSPT)StraightQuote ↗

Not sure which fitting you need?

Send the existing model or tube marking, port thread and quantity. You can email a part photo or drawing to help us check the connection.

Ask for help choosing →

FOUR CORE SERIES

Four series. One clear selection path.

The family and geometry are published first. Tube OD, thread standard, pressure rating and operating temperature are confirmed for the exact model in the RFQ.

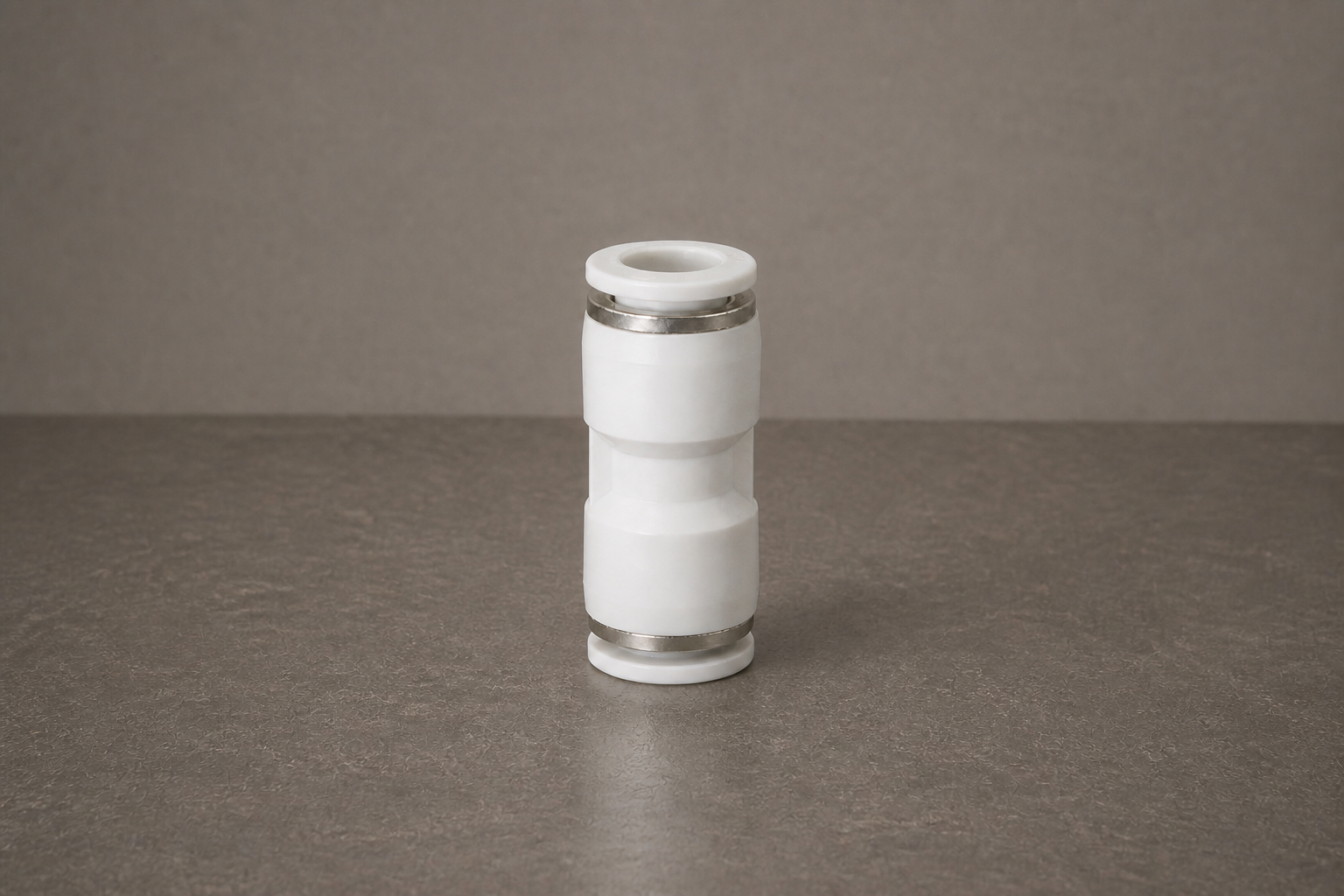

PU / PV / PG Union, union elbow & reducer
01 · PU / PV / PG

Union, union elbow & reducer

Construction: Engineering plastic + nickel-plated brass

Available models: PU straight union, PV union elbow and PG reducing union; tube sizes confirmed by RFQ

For FRPU tube, select the fitting by the exposed PU inner tube OD.

Request PU / PV / PG fittings →

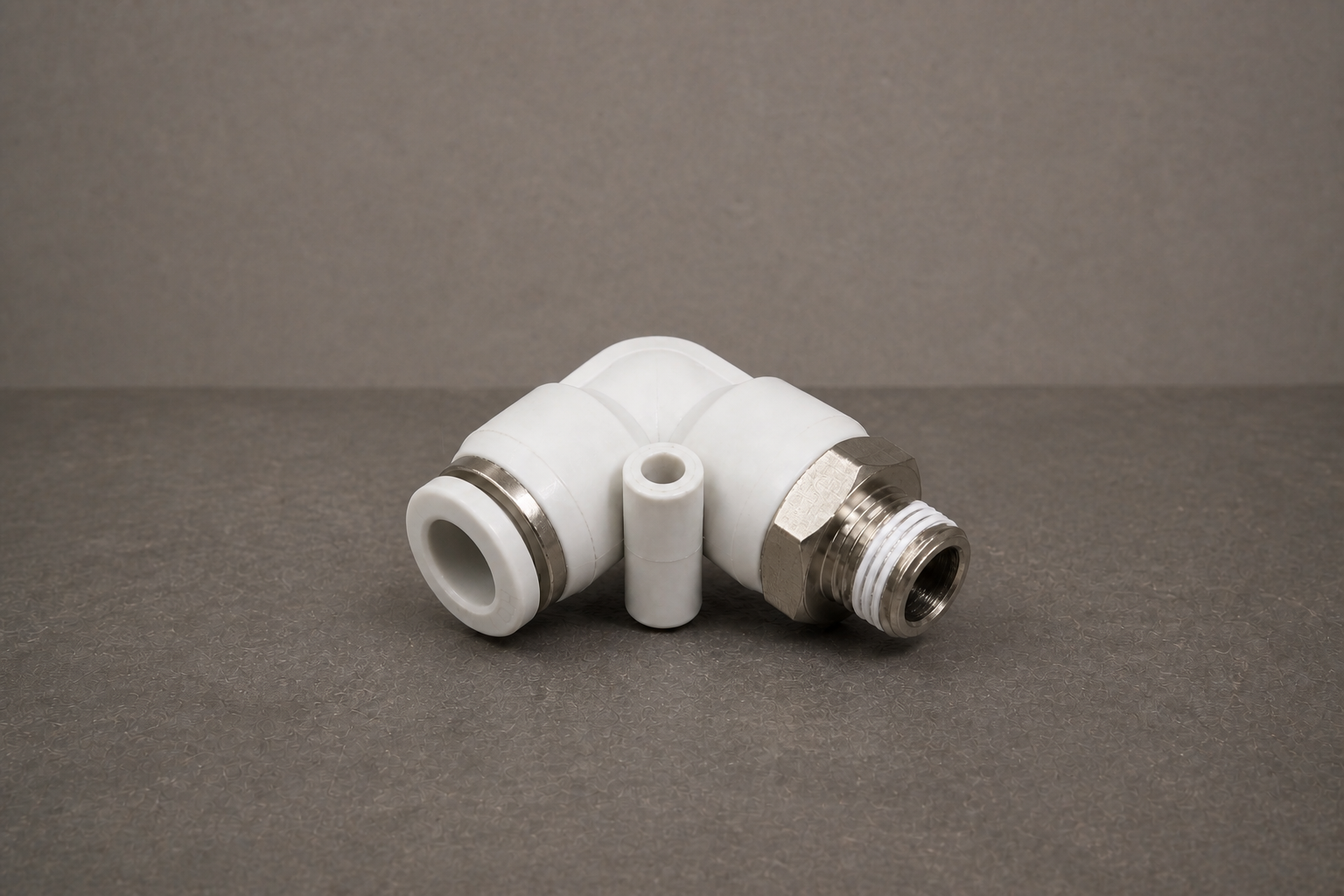

PL Male elbow connector
02 · PL

Male elbow connector

Construction: Engineering plastic + nickel-plated brass

Available models: Threaded elbow stock documented across M5 and BSPT combinations

For FRPU tube, select the fitting by the exposed PU inner tube OD.

Request PL fittings →

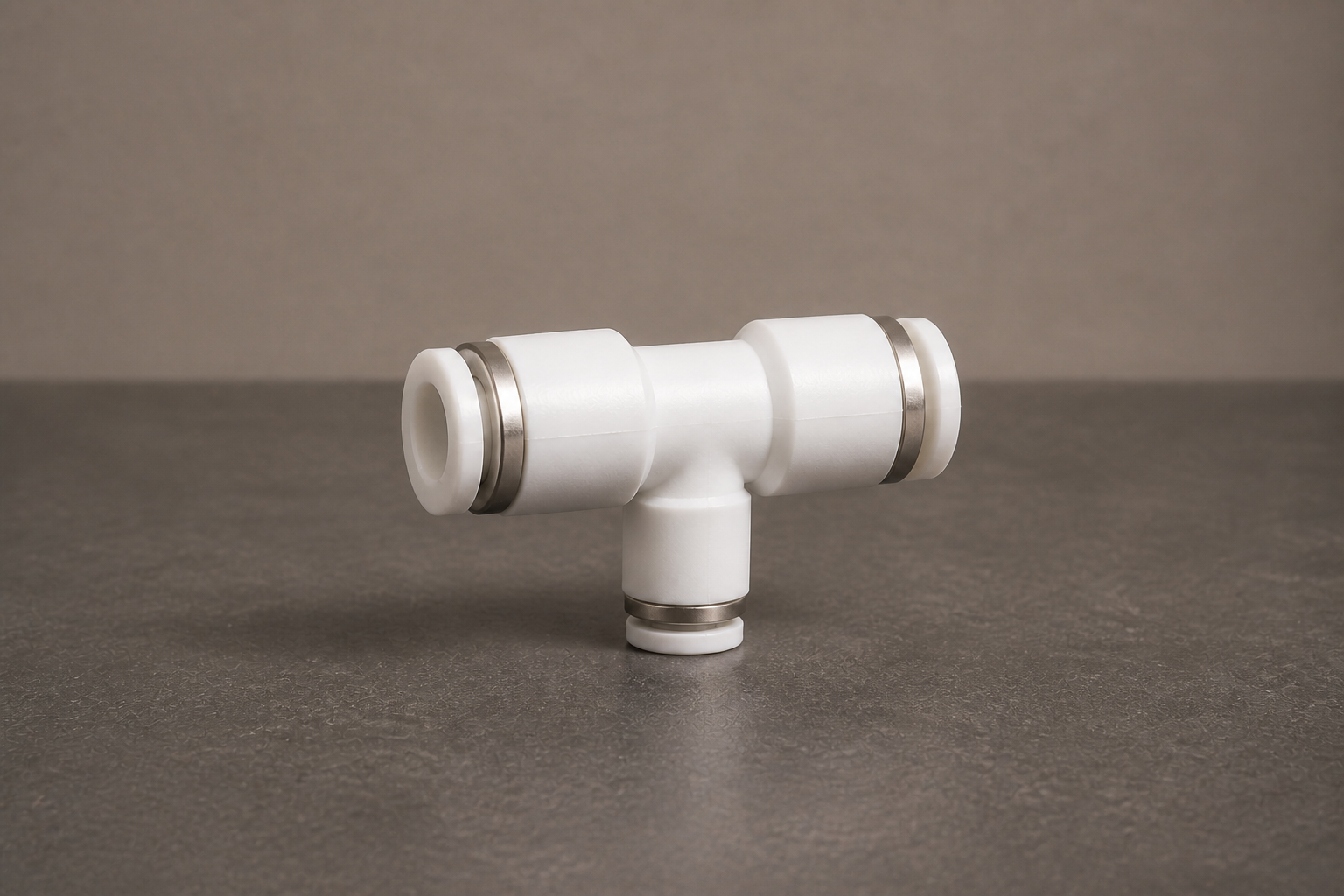

PW Tee & reducing tee
03 · PW

Tee & reducing tee

Construction: Engineering plastic + metal retaining rings

Available models: Equal and reducing three-port combinations documented in factory stock

For FRPU tube, select the fitting by the exposed PU inner tube OD.

Request PW fittings →

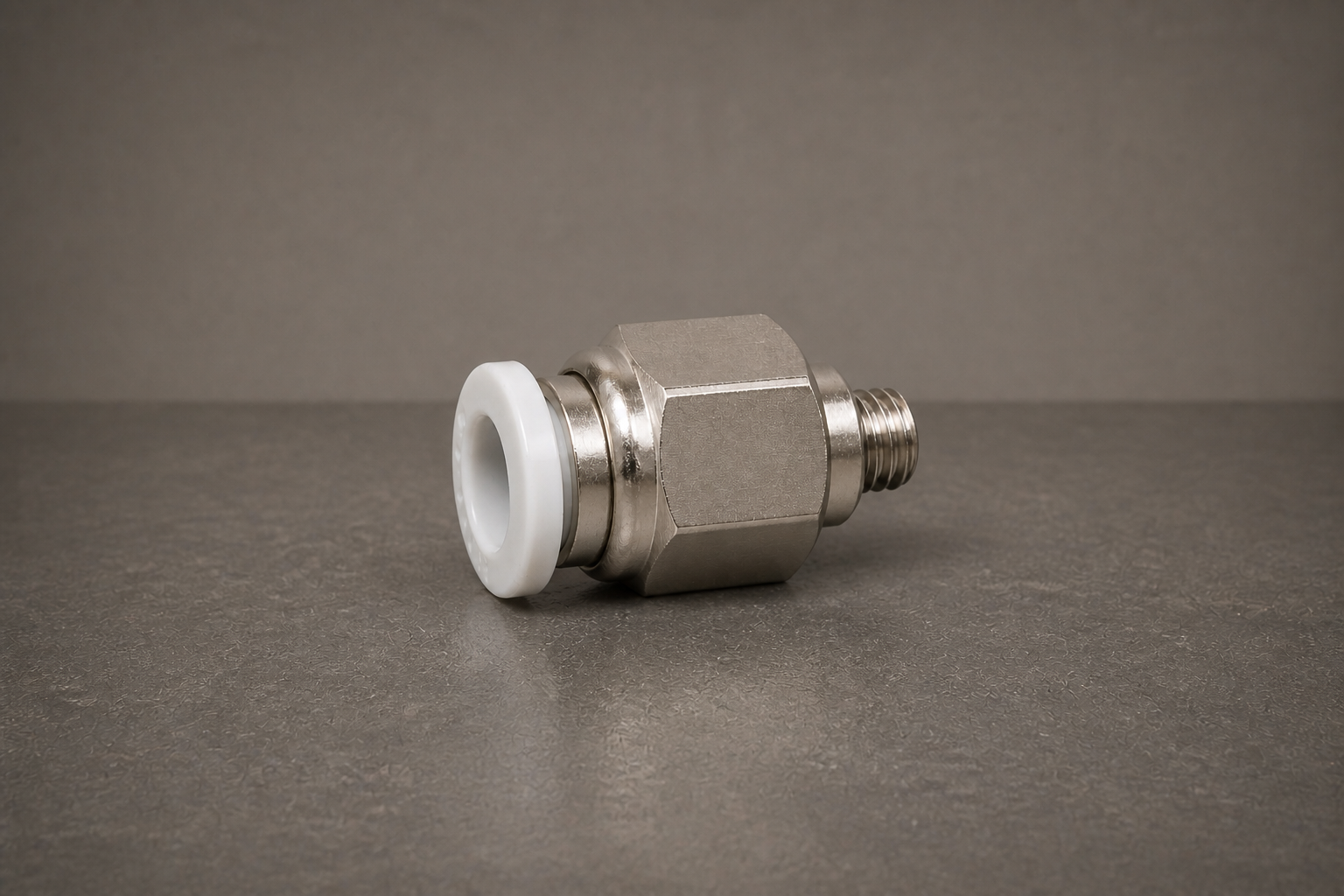

BPC Metal male straight connector
04 · BPC

Metal male straight connector

Construction: Nickel-plated brass + push-in collet

Available models: Documented stock includes BPC8-M5, BPC8-01 and BPC8-02; full matrix confirmed by RFQ

For FRPU tube, select the fitting by the exposed PU inner tube OD.

Request BPC fittings →

THREAD CODE MAP

M5 is metric. 01–04 are BSPT.

The numeric suffix identifies the male thread on threaded PL and BPC models. Confirm the receiving port standard before ordering.

M5Metric M5 thread
01R1/8 BSPT
02R1/4 BSPT
03R3/8 BSPT
04R1/2 BSPT

FRPU COMPATIBILITY

Match the connector to the inner tube—not the protective jacket.

FRPU 6×4Use 6 mm push-in fitting
FRPU 8×5Use 8 mm push-in fitting

Peel approximately 10 mm of PVC outer layer before insertion. Matching fittings for the broader FRPU range are confirmed by the exposed PU inner tube OD.

READY FOR A SPEC CHECK?

Send the application. We’ll build the matching supply list.
