SPARK-ZONE PROTECTION · FRPU SERIES

FRPU flame-retardant pneumatic tubing for welding areas.

A flexible PU pneumatic tube inside a flame-retardant outer jacket, designed to help shield compressed-air routing from welding spatter and other spark-prone industrial environments.

Compressed air4×2.5–16×125 colors6×4 / 8×5 · 100 m coils
HOLID FRPU tube showing the red PVC outer jacket around the black PU inner tube
Red flame-retardant PVC outer jacketBlack flexible PU inner air tube
Double-layer construction · one continuous air line

Order by the coil

6×4 and 8×5: 100 m coils. Combine sizes and colors in one RFQ; order quantity is confirmed in your quotation.

Evaluate a 10 m sample

One first free product sample per verified company, subject to availability. You pay international freight; cost is confirmed for your destination.

Plan your delivery

Stock normally dispatches within 3 days after order and payment confirmation. Non-stock production normally takes one week; confirm your model and destination.

SIZE SELECTION

Match the fitting to the PU inner tube.

The model size refers to the PU tube under the PVC jacket. Check the existing tube or fitting size before requesting a quote.

FRPU 6×4

PU tube OD × ID
6 × 4 mm
Overall OD, including jacket
7.9–8.1 mm
Push-in fitting size
6 mm
Standard coil
100 m
Request FRPU 6×4 quote

FRPU 8×5

PU tube OD × ID
8 × 5 mm
Overall OD, including jacket
9.9–10.1 mm
Push-in fitting size
8 mm
Standard coil
100 m
Request FRPU 8×5 quote

Need another size or help choosing?

Send the tube marking or size, working pressure and temperature. Add your quantity and destination if known. We will confirm model suitability, packing and delivery in the quotation.

Ask about your application →
01

Shield the PU core

The outer jacket takes the exposed position in welding and fabrication zones.

02

Check your working conditions

Confirm pressure, temperature and bend radius for your selected model before installation.

03

Peel and connect

Remove the jacket at the end and insert the 6 mm or 8 mm PU core into the fitting.

PRODUCT VIEWS

See the FRPU construction from more than one angle.

Inspect the coil, tube construction and available colors. Use the model table below to check the minimum bend radius for your installation.

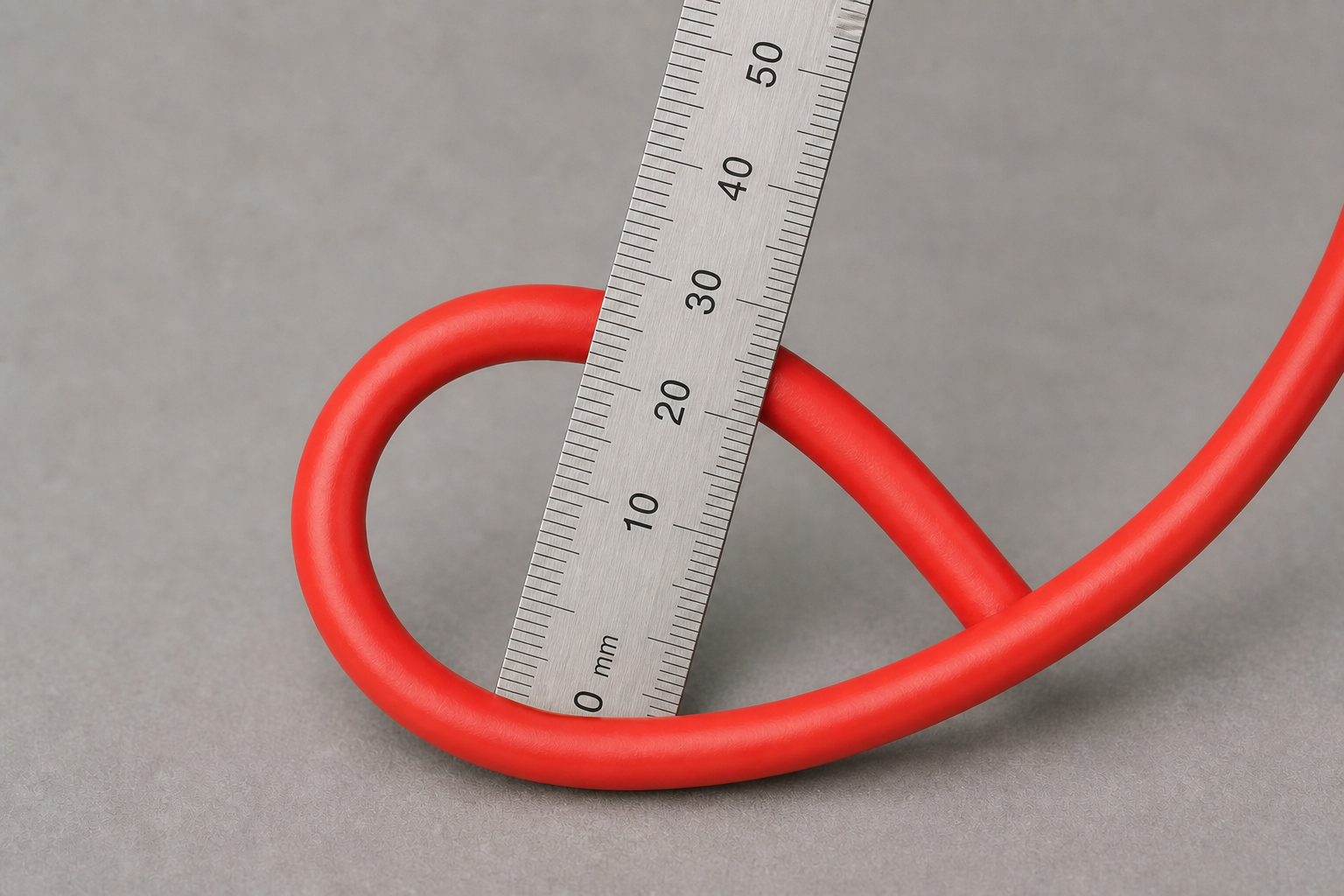

Red HOLID FRPU tube formed into a clean loop beside a stainless metric ruler with millimeter markings
Metric bend referenceVisible millimeter scale · use the model table for 15 or 20 mm

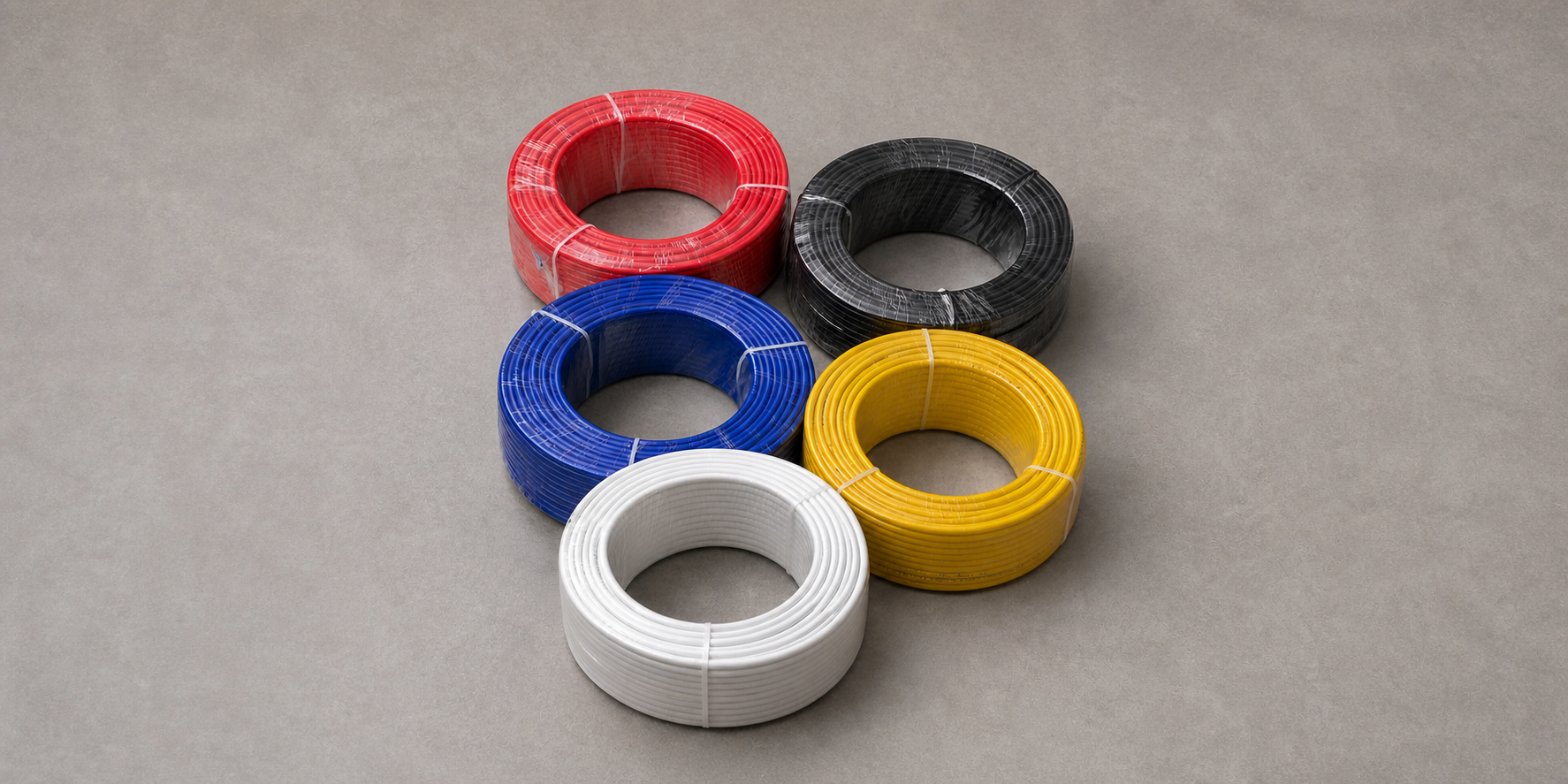

Five real shrink-wrapped HOLID FRPU tube coils in red, black, blue, yellow and white on an extended clean studio floor
Real packed color rangeFive documented colors · authentic wrap and ties

TECHNICAL LIMITS

Check the limits for your air line.

Use FRPU for compressed air. Confirm your working pressure, continuous temperature and external heat exposure against the limits below and the selected model’s data.

Inner / outer materialPU inner tube / PVC protective layer
Working mediumCompressed air only
Long-term temperature−20°C to +70°C
Instant external heatUp to 100°C
Working pressure at 20°C1.0 MPa
Available colorsRed, blue, black, white, yellow
First business sampleOne free 10 m sample per verified company; subject to availability; applicant pays international freight
50 / 100 m coilsOne continuous length, no joints

MODEL SPECIFICATIONS

Compare the 6×4 and 8×5 operating data.

Check the overall diameter for routing space, the PU tube diameter for fittings, and the pressure and bend limits for your equipment.

↔ Swipe the table left or right to view all columns.

ModelPU inner tubeOverall ODPressure at 60°CBurst pressureMin. bend radius5 × 100 m carton
FRPU 6×46 mm OD × 4 mm ID7.9–8.1 mm0.70 MPa3.3 MPa15 mm5 × 100 m / 26.3 kg
FRPU 8×58 mm OD × 5 mm ID9.9–10.1 mm0.68 MPa3.4 MPa20 mm5 × 100 m / 37.5 kg

Weight figures are technical references, not public retail pack sizes. Commercial supply for 6×4 and 8×5 is based on 100 m coils; the other sizes follow the 50 m or 100 m standard full-coil formats in the complete range table below.

COMPLETE FRPU SUPPLY RANGE

Seven sizes available through one FRPU inquiry.

Choose a size and standard coil length for your inquiry. Production reference net weights have a tolerance of ±0.20 kg; final batch and packed weights are confirmed with your quotation.

↔ Swipe the table left or right to view all columns.

FRPU size · PU OD × IDStandard full coilProduction reference net weight · ±0.20 kgReference carton format
FRPU 4×2.5100 m3.30 kg5 coils · 40 × 40 × 64 cm
FRPU 6×4100 m5.20 kg5 coils · 40 × 40 × 64 cm
FRPU 8×5100 m7.30 kg5 coils · 40 × 40 × 64 cm
FRPU 10×6.550 m5.50 kg5 coils · 40 × 40 × 64 cm
FRPU 12×850 m7.00 kg5 coils · 40 × 40 × 64 cm
FRPU 14×1050 m8.70 kg3 coils · 51 × 51 × 26 cm
FRPU 16×1250 m10.20 kg3 coils · 51 × 51 × 26 cm

Ask about current stock for 6×4 and 8×5. Performance data and cut-length availability for 4×2.5, 10×6.5, 12×8, 14×10 and 16×12 are confirmed in the model-level quotation.

Clean FRPU tube end with approximately 10 millimetres of black PU inner tube exposed

INSTALLATION METHOD

Peel the protection. Connect the PU inner tube.

Cut the outer layer

Carefully slit about 10 mm of the PVC layer without cutting the PU tube.

Peel back the PVC

Expose a clean, round section of the PU inner tube.

Push into the fitting

Select the fitting by the PU inner tube outer diameter: 6 mm or 8 mm.

Important: never insert the PVC outer layer into a push-in fitting. The fitting grips and seals the PU inner tube only.
View matching fittings →

DOCUMENTATION

Evidence available for technical review.

Product inspection documents and available flame-retardance test records can be provided during quotation. Document scope and date are stated with the file; certification is never implied beyond the reported sample.

Download English specification guide ↓Request documents

BEFORE YOU REQUEST

Check the application and the first order.

Is this an air tube or an electrical sleeve?

FRPU carries compressed air through a PU inner tube protected by a flame-retardant PVC jacket. It is not heat-shrink tubing or an electrical cable sleeve. Share your working conditions so we can check suitability.

What documents can I request?

Ask for model dimensions, inspection documents and available flame-retardance test records. The sample, test method, date and scope are stated with the document; a sample result does not certify every size.

Do I need a complete specification to contact you?

No. Start with your company, email and a short request. Sizes, quantity, packing, freight and order terms can be confirmed with our sales team before you order.
